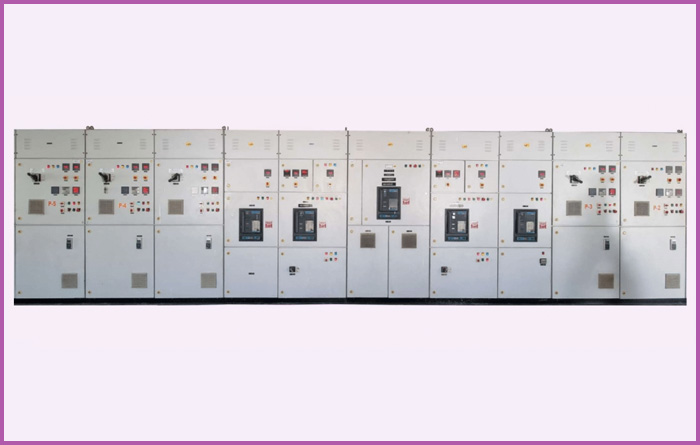

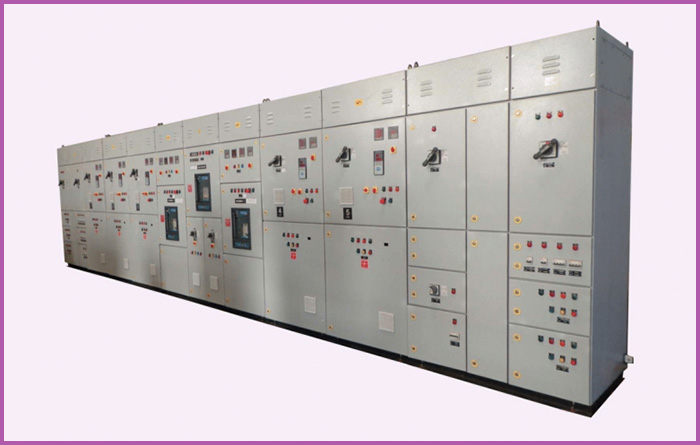

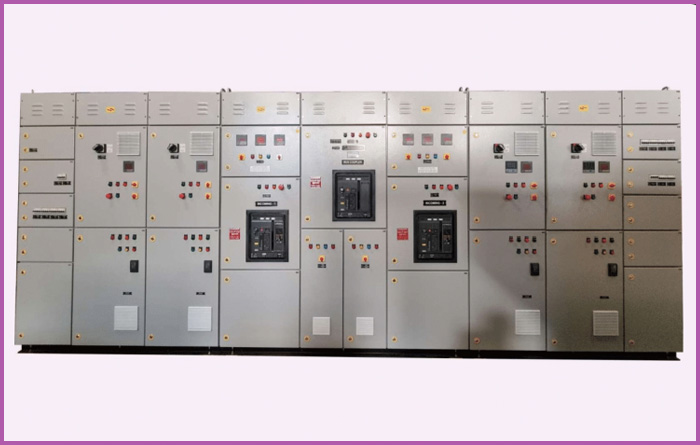

Power Control Center, Motor control center, Power cum Motor Control Centre.
- Maximum current up to 6300A and fault level up to 65KA.
- Compliance to IS:13947 and IEC 61439.
- Panel enclosure: degree of protection up to IP55.
- Design as per customer requirements.

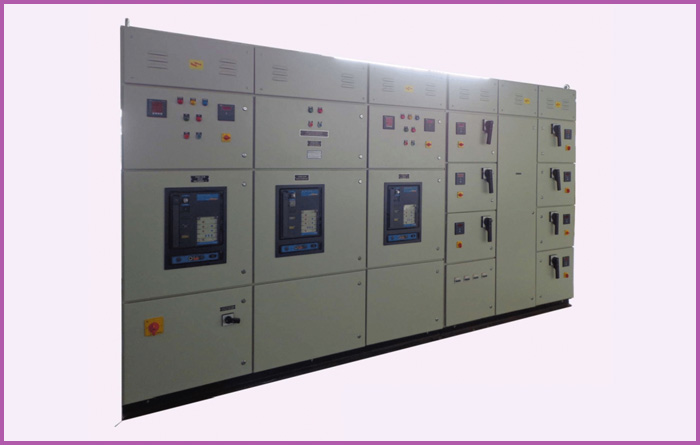

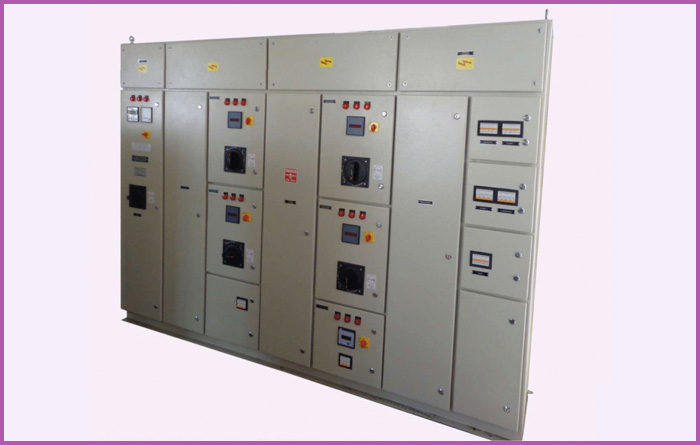

Power Distribution Panel
- Maximum current up to 6300A and fault level up to 65KA.
- Compliance to IS:13947 and IEC 61439.
- Panel enclosure: degree of protection up to IP55.
- Design as per customer requirements.

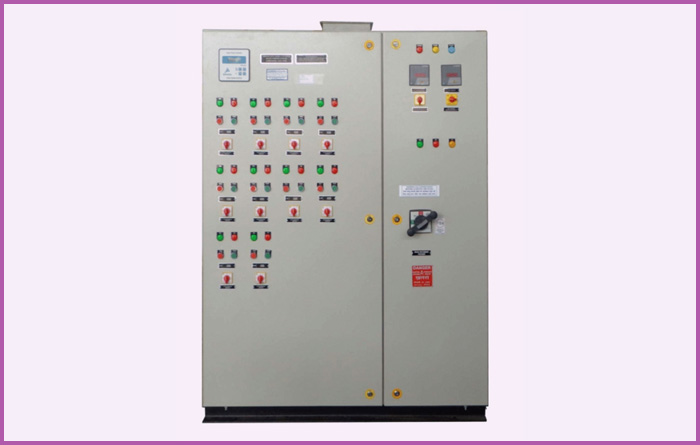

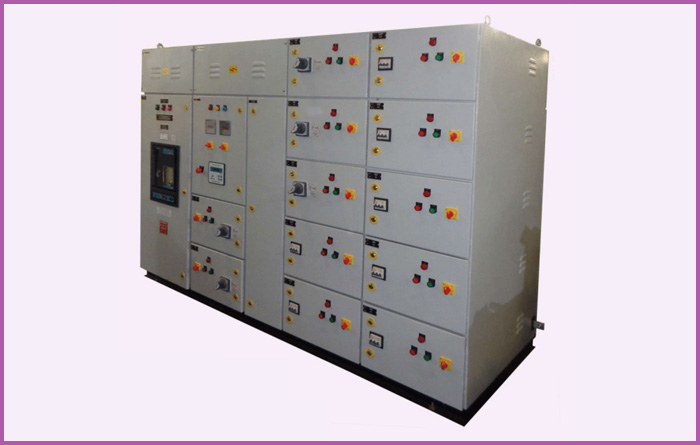

Automatic Power Factor Control Panel
- APFC Panel range up to 1200kVAr.
- Panels with optimal number of steps.
- Compartmentalized & Non-compartmentalized type.
- Available with Capacitor duty Contactor switching & Thyristor switching
- Available with Detuned Reactors.
- Available with Auto and Manual switching options.
- Compliance to IS: 16636:2017.
- Panel enclosure: degree of protection up to IP42.
- Design as per customer requirements.

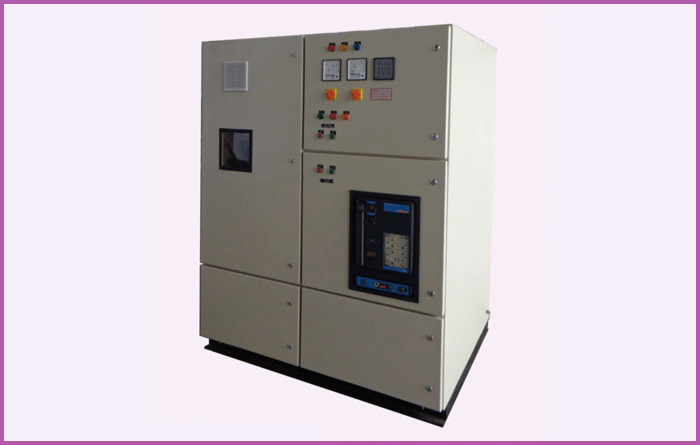

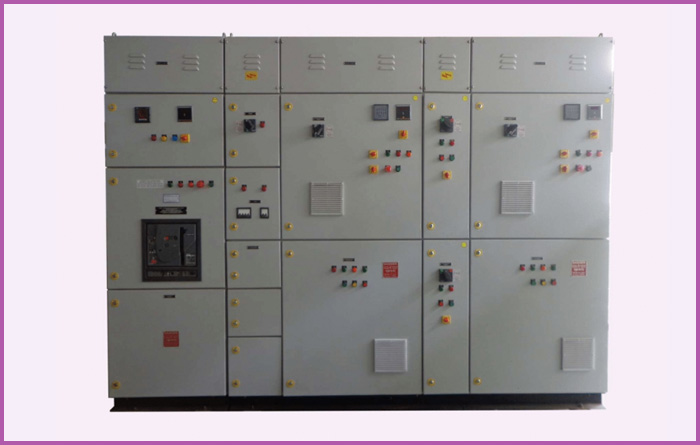

Soft Starter Control Panel
- Soft Starter Panel range up to 600KW/800HP.
- Available in MCC panel Configuration.
- Available with Auto and Manual switching options.
- Available with or without PLC compatible.
- Compliance to IS:13947 and IEC 61439.
- Panel enclosure: degree of protection up to IP55.
- Application: For submersible, mono sub, HSCF, VT, VSCF, Polder, sewage, SCF pump sets and 4/6/8 Pole induction AC motors, ONGC Oil SRP well & Gas field etc.
- Design as per customer requirements.

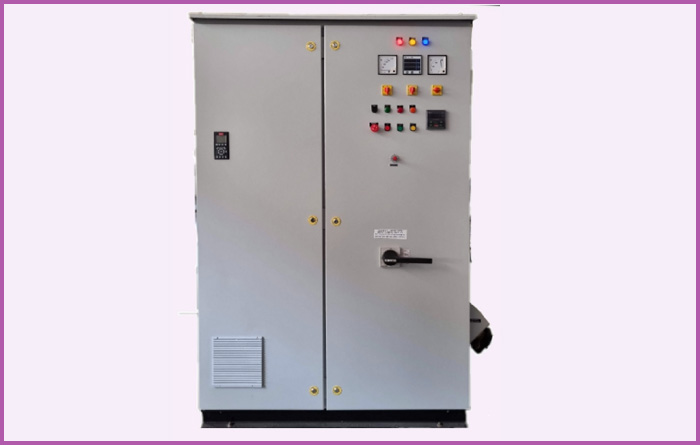

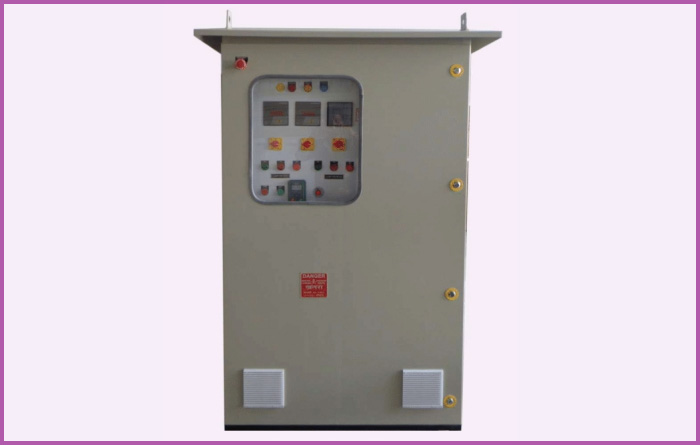

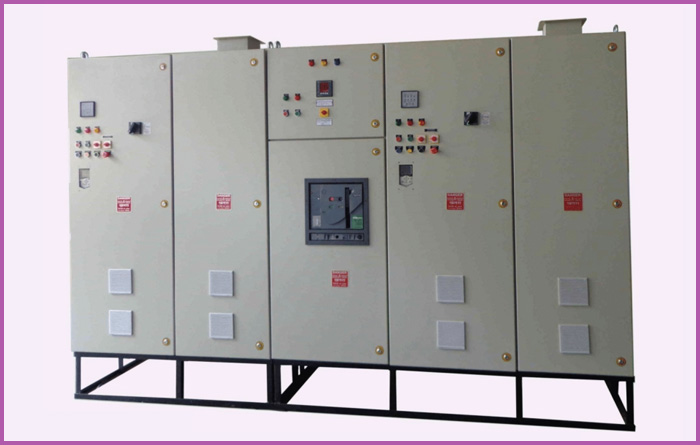

Variable Frequency Drive Control Panel
- VFD Panel range up to 600KW/800HP.
- Available in MCC Panel Configuration.
- Available with Auto and Manual switching options.
- Available with or without PLC compatible.
- Compliance to IS:13947.
- Panel enclosure: degree of protection up to IP55.
- Application: For submersible, mono sub, HSCF, VT, VSCF, Polder, sewage, SCF pump sets and 4/6/8 Pole induction AC motors, ONGC Oil SRP well & Gas field etc.
- Design as per customer requirements.

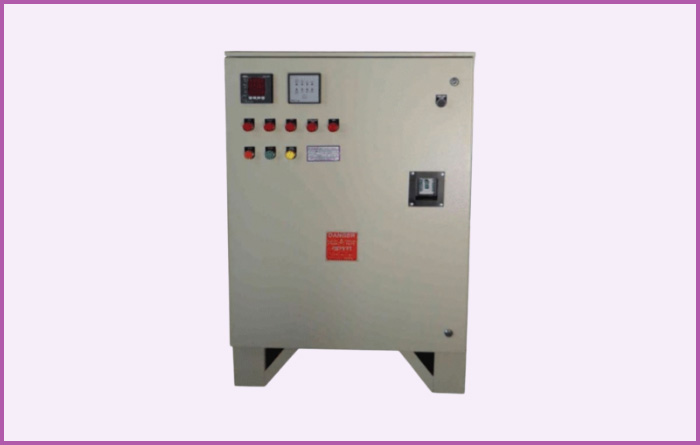

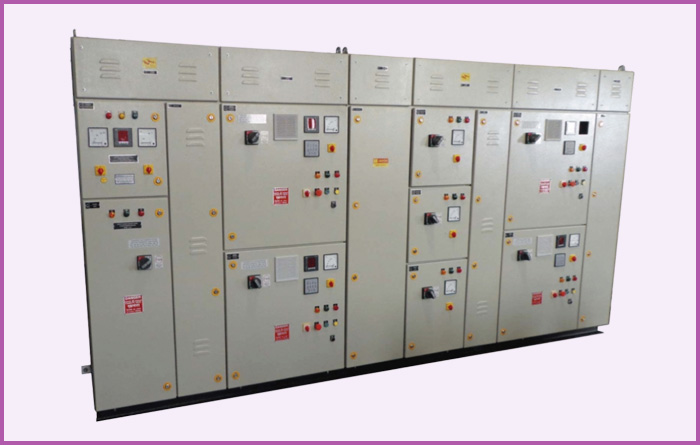

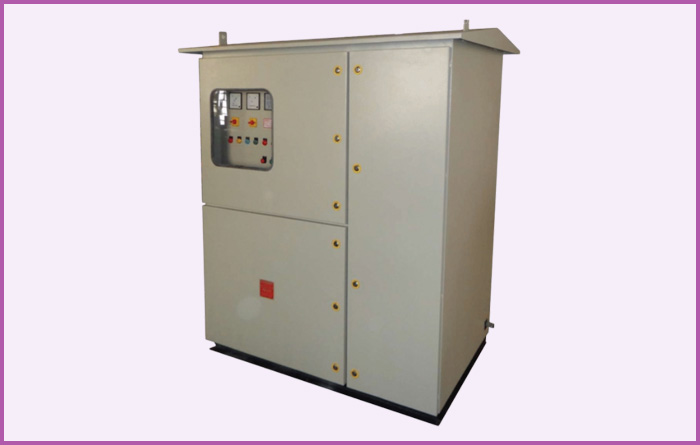

Auto Transformer Control Panel
-ATS Panel range up to 450KW/600HP.
-Available in MCC panel Configuration.
-Available with Air Cooled / Oil Cooled Auto Transformer.
-Available with Auto and Manual switching options.
-Available with or without PLC compatible.
-Compliance to IS:13947.
-Panel enclosure: degree of protection up to IP55.
-Application: For submersible, mono sub, HSCF, VT, VSCF, Polder, sewage, SCF pump sets and 4/6/8 Pole induction AC motors, ONGC Oil SRP well & Gas field etc.
-Design as per customer requirements.

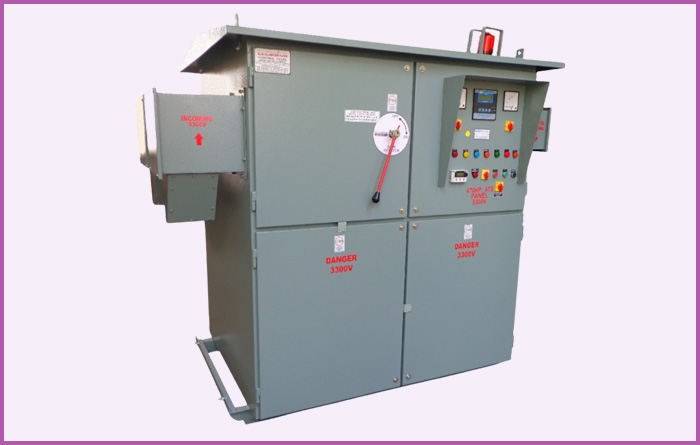

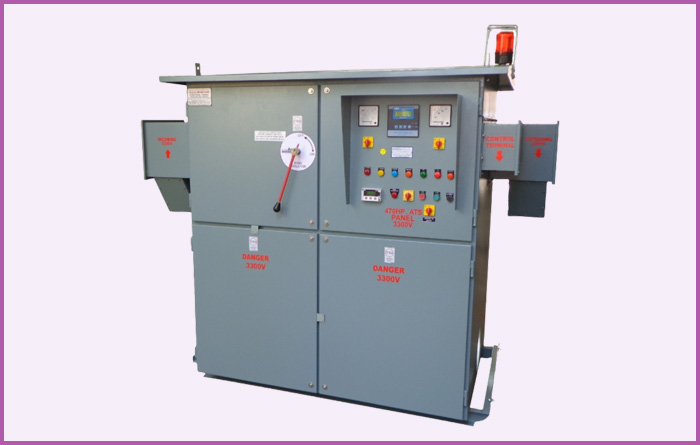

HT Auto Transformer Control Panel
-ATS Panel range up to 600KW/800HP - 3.3KV/6.6KV.
-Available with Air Cooled / Oil Cooled Auto Transformer.
-Panel enclosure degree of protection Indoor IP: 41 & For Outdoor IP: 54/55.
-Application: For Mining etc. Design as per customer requirements.

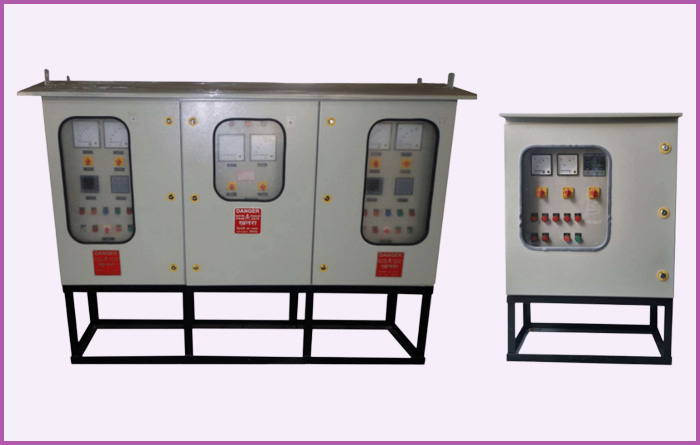

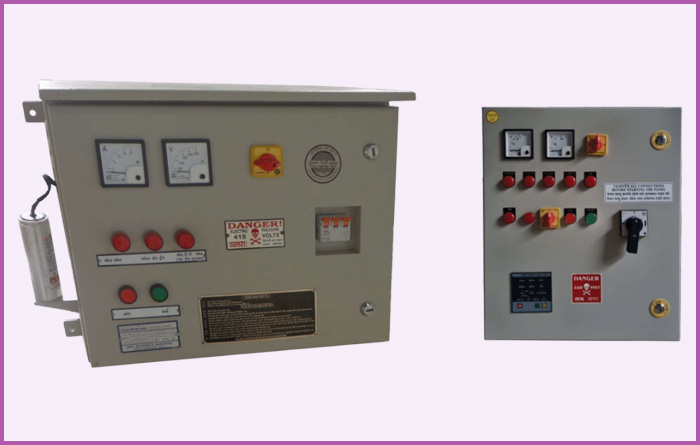

DOL Control Panel, Star-Delta Control Panel
-Panel range up to 600KW/800HP.
-Available in MCC panel Configuration.
-Available with Standard & As per Type "2" Co-ordination, Iq=50 kA at 415V, 3ph, 50Hz as per IS/IEC 60947-4-1 standard for IE2/3 Motors.
-Available with Auto and Manual switching options.
-Available with or without PLC compatible.
-Compliance to IS:13947.
-Panel enclosure: degree of protection up to IP55.
-Application: For Submersible, Mono sub, HSCF, VT, VSCF, Polder, Sewage, SCF pump sets and 4/6/8 Pole induction AC motors, ONGC Oil SRP well & Gas field etc.
-Design as per customer requirements.

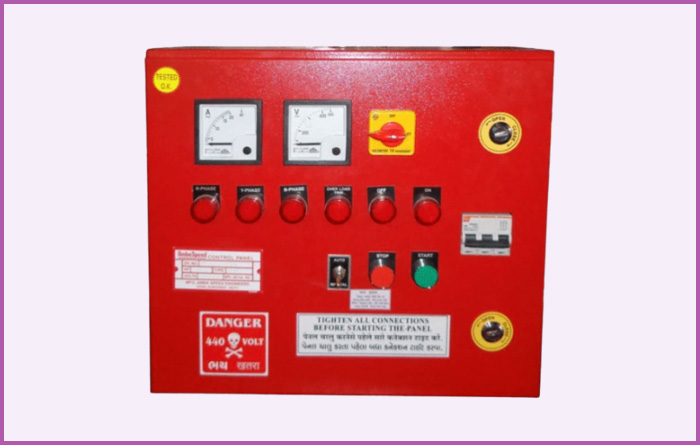

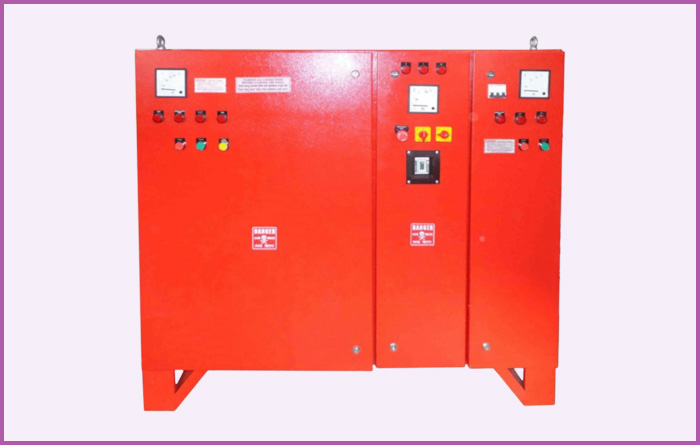

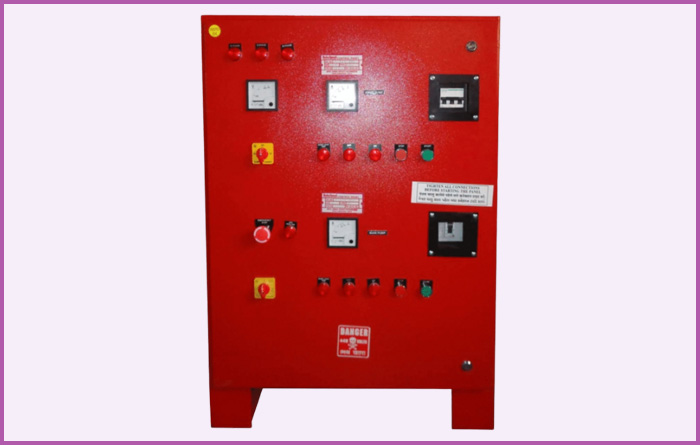

Fire Fighting Control Panel
-Panel enclosure: degree of protection up to IP55.
-Compliance to IS:13947.
-Application: For Building and Industrial, Mines etc.
-Design as per customer requirements.

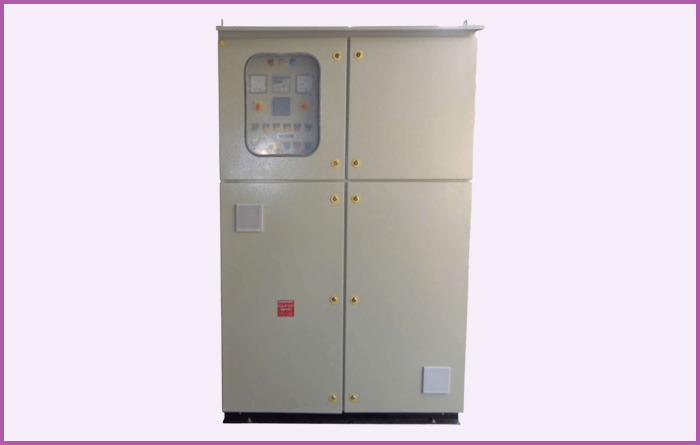

FCMA Soft Starter Control Panel
-FCMA Panel range up to 600KW/800HP.
-Available with or without PLC compatible.
-Compliance to IS:13947.
-Panel enclosure: degree of protection up to IP55.
-Design as per customer requirements.

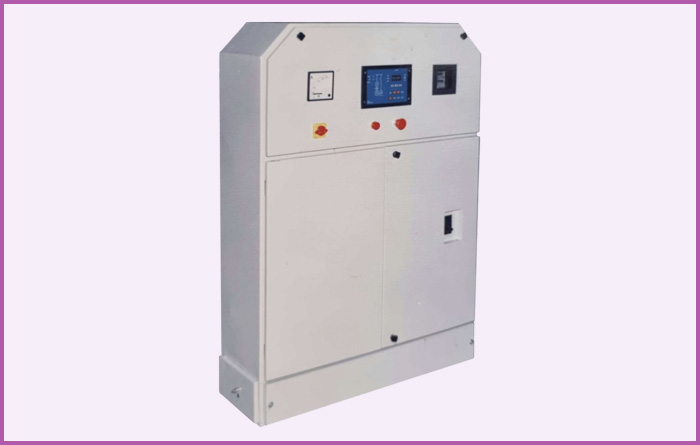

D.G. Set Control Panel with Auto Synchronizing & Automatic mains failure Panel.
-Panel enclosure degree of protection up to IP55.
-Compliance to IS:13947.
-For D.G. set and Power supply application.
-Design as per customer requirements.

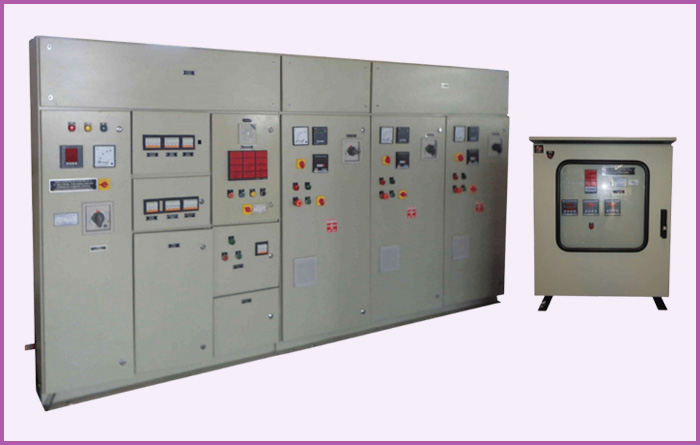

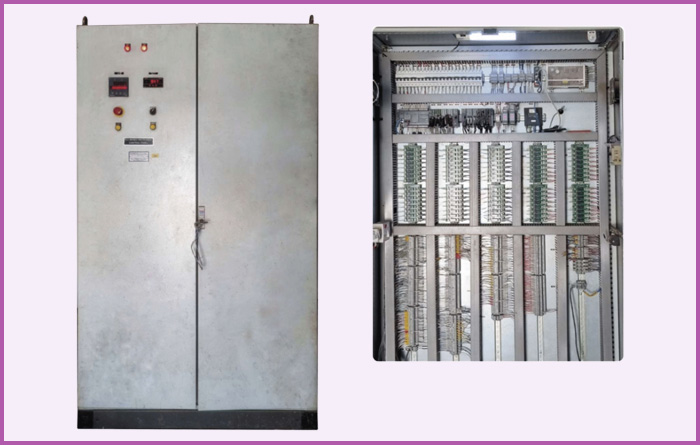

Instrumentation Control Panel, Programmable Logic Controller Panel.
-Application: For Water & Sewage-Drainage etc.
-Instrumentation Panel with PLC/SCADA GSM/GPRS base remote operation system.
-Compliance to IS:13947.
-Panel enclosure: degree of protection up to IP55.
-Design as per customer requirements.

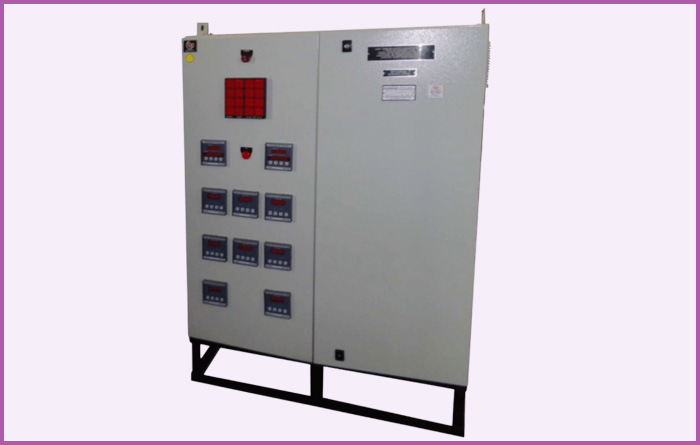

Annunciation Panel
-Panel enclosure: degree of protection up to IP55.
-Compliance to IS:13947.
-Application: For Thermal Power Station, Mining, HVAC, Water & Sewage-Drainage etc.
-Design as per customer requirements.
-Panel enclosure degree of protection up to IP55.
-Compliance to IS:13947.
-Application: For Water & Sewage-Drainage, Building and Industrial, Mines etc.
-Design as per customer requirements.
-Available in DOL, STAR-DELTA, ATS Configuration.
-Compliance to IS: 13947.
-Panel enclosure: degree of protection up to IP55.
-Design as per customer requirements.
-Design as per customer requirements.

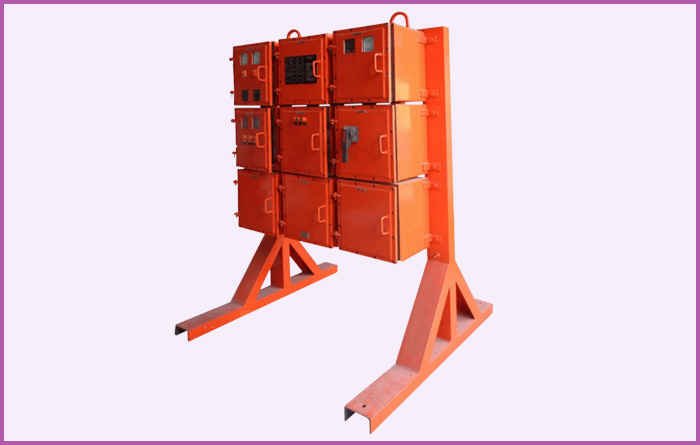

-Application : For Underground Mines.
-Design as per customer requirements.

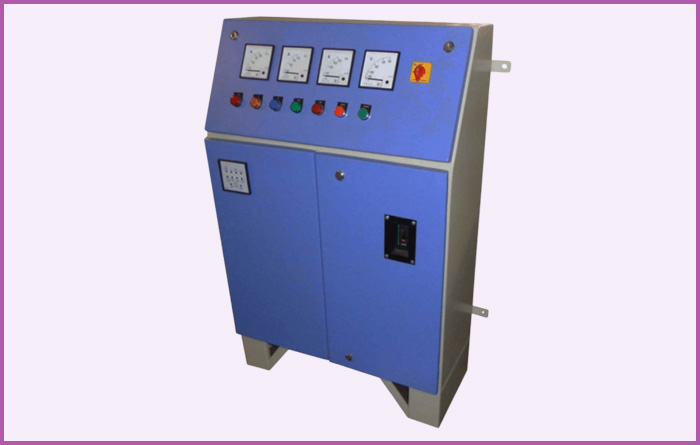

-As Per ISI Test Batch for Pump/Motor Manufacturers.
-Design as per customer requirements.

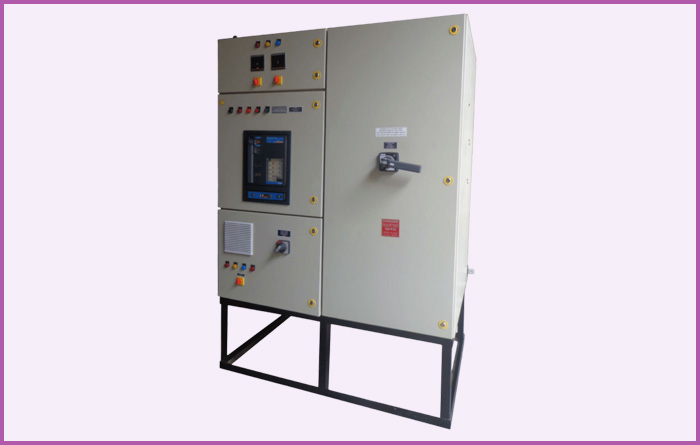

-Application: For Mains & D.G. supply, Working & Stand-by Panel.
-Maximum nominal current up to 6300A and fault current up to 65KA.

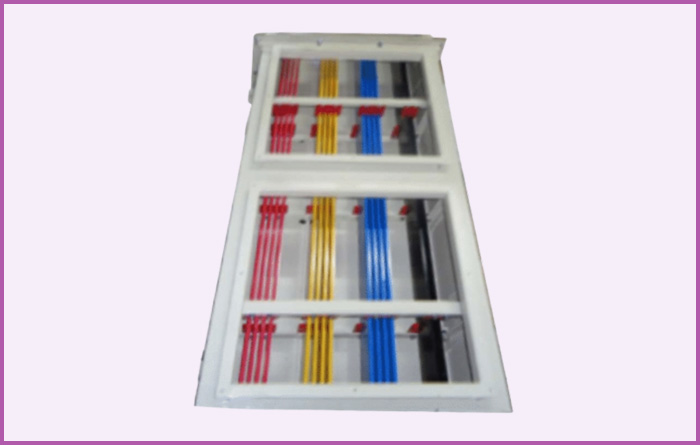

-Bus-Duct (Aluminum & Copper Busbar) Indoor/Outdoor.
-Bus-Duct enclosure: degree of protection up to IP55.
-Compliance to IS:13947.
-Application: For Power transformer Connection.
-Design as per customer requirements.

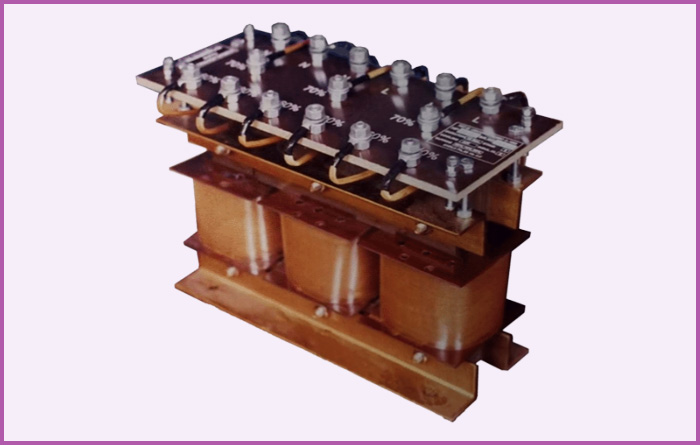

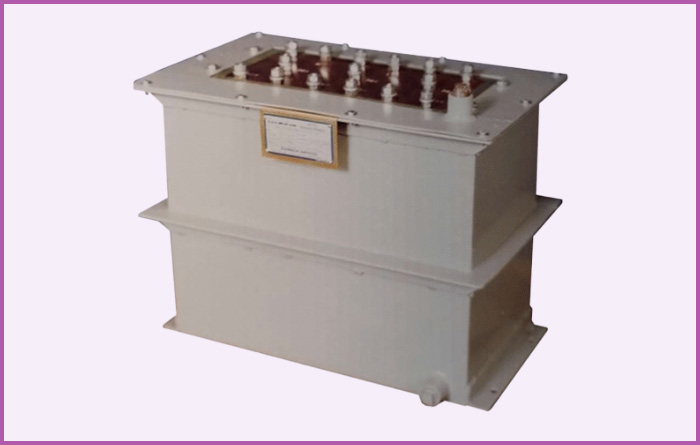

-Auto-Transformers range up to 600HP.
-Auto Transformer Available in Air Cooled / Oil Cooled.
-Compliance to IS:13947(part 4 of sec.1) 1993.
-Available in 6/12/15 starts/hour.
-Percentage regulation below 10%.
-Vacuum impregnated for longer life.
-Tested and certified by E.I.L. RITES etc.
-Compact size.
-C.P.R.I. Tested.

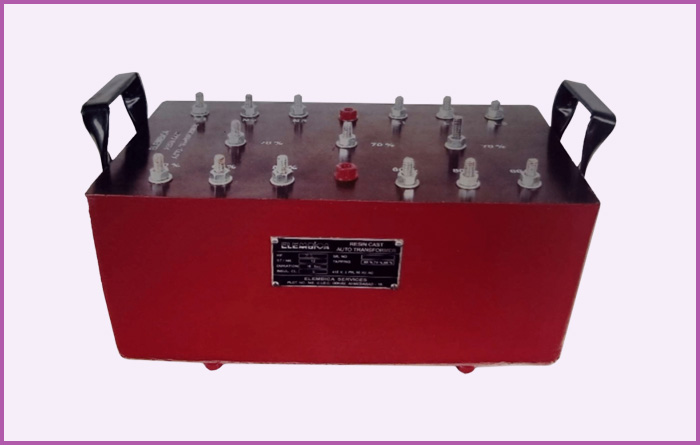

-Resin cast Auto-Transformers range up to 300HP.
-Compliance to IS:13947(part 4 of sec.1) 1993.
-Available in 6/12/15 starts/hour.
-Percentage regulation below 10%.
-Tested and certified by CIPET etc.
-Compact size.
-C.P.R.I. Tested.
